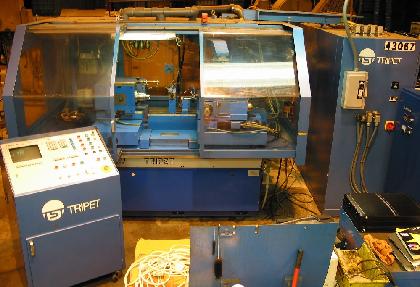

TRIPET TST201 CNC I.D. + O.D.-Face Grinding Center

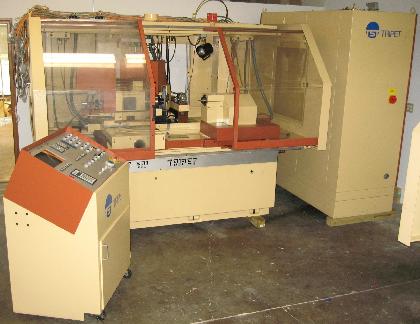

TRIPET , TST201 - CNC - ID & OD Grinder
TRIPET , TST201 - CNC - ID & OD Grinder
T R I P E T

TST 201 - CNC
I.D.
& O.D. Grinding Center


High-Precision High-Production
I.D. Grinding Center
with O.D. / Face Grinder
5 Axis  CNC  Brutsch 2000  Control

with Fully Automated Loader  ( optional )


Technical Data ;

- Grinding Diameter Range ;   3 - 150 mm , ( .118" - 6" )
- Grinding Length ;   200 mm , ( 8" )
- Grinding Spindle speed ;   90’000 rpm  ( option 8’000 – 150’000 rpm )
- Center height above table ;   162 mm , ( 6.3" )
- Max. table travel ;        480 mm , ( 18.9” )
- Workhead angular setting ;   + 45 deg. to – 30 deg.
- Workhead spindle bore diameter ;  40 mm , ( 1.57” )
- Workhead Camlock 4 ;  max. weight ;  50 kg , ( 110 lbs )
- Workhead Spindle speed ;   75 - 1300 rpm
- Dimensions ;  4770 x 3175 x 2155 mm , ( 188” x 125” x 85” )
- Net weight ;   approx. 4000 kg , ( 8818 lbs )
- Required power ;   10 - 15 kW

5 Axis CNC , Brutsch 2000 Control ;  RS232

- Z Axis ;   480mm  (18.9")   /   0.001mm     (.00004")
- X Axis ;   143mm  (5.63")   /   0.00025mm  (.00001")
- U Axis ;    50mm  (1.97")   /   0.0005mm    (.00002")
- R Axis ;   O.D. Grinding Unit  ( 1570 Peripheral Grinding Attachments)
- P Axis ;   O.D. Grinding Unit  ( 1570 Peripheral Grinding Attachments )

Machine equipped with ;

- Elect. Control Cabinet ;  480 Volt , 3 Ph. ( or 380 Volt )
- Elect. CNC Brutsch 2000 Control Panel ; RS232 , with Diagnostic Functions
- 5-Axise Servo Drives ; Indramat Servo Motors and Drives
- High-Frequency I.D. Grinding-Spindles 90’000 rpm  ( option 8’000 – 150’000 rpm )
- High-Frequency Spindle speed Drives
- High-Frequency Spindle temperature control coolant unit
- O.D. Grinding Spindle ; 1570 Peripheral Grinding Attachments
- Grinding Spindles Oil-Mist Lubrication Systems
- Grinding Wheel Guard
- Linear & Circular Interpolation
- Dressing Unit for O.D. Grinding-Wheel ; Dresser Diamond
- Dressing Unit for I.D. Grinding-Wheel ; High-Frequency Spindle Dresser
- Automatic Wheel Wear Compensation
- Air - Gap Grinding Elimination System
- Workhead Camlock 4 ;  Chuck 3-Jaw ;  150mm / 6”
- Automatic Lubrication System
- Coolant System with Paper Filter
- Machine Complete enclosed with Splash Guard and Sliding-Doors
- Operator / Program & Maintenance Manuals in English


Image:

Tripet TST201 CNC
I.D. Grinding with
O.D. Face Grinding
5 Axis CNC  Brutsch 2000 Control
with Fully Automated Loading


" Demo Video on YouTube "



TRIPET TST201-CNC-4R Internal Grinding Center
TRIPET , TST201 - CNC - 4R ,  I.D. Grinder
TRIPET , TST201-CNC-4R , I.D. Grinder

T R I P E T

TST 201 - CNC - 4R


High-Precision 4 Spindle I.D. Grinding Center

5 Axis  CNC  Brutsch 2000  Control




Tripet  TST201 CNC 4R

Internal Grinding Center
5 Axis CNC
Brutsch 2000 Control


" Demo Video on YouTube "



TRIPET TST300-CNC-4R Internal Grinding Center

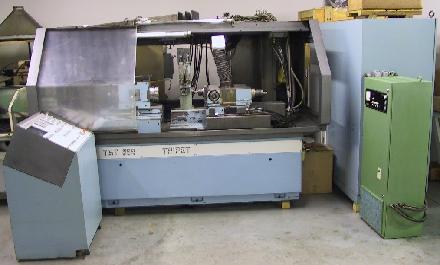

TRIPET , TST300 - CNC - 4R , ID Grinder
TRIPET , TST300-CNC-4R , ID Grinder

T R I P E T

TST 300 - CNC - 4R


High-Precision 4 Spindle I.D. Grinding Center

5 Axis  CNC  Brutsch 2000  Control



TRIPET ;  TST 300 CNC 4R ,  Technical Data ;


- Grinding Diameter Range ;   3 - 250 mm , ( .118" - 10" )
- Grinding Length ;   200 mm , ( 8" )
- Center height above table ;   162 mm , ( 6.3" )
- Grinding Spindle speed ;   8000 - 150000 rpm
- Workhead Camlock 6 ;   100 kg , ( 220 lbs )
- Workhead Spindle speed ;   75 - 1300 rpm

5 Axis CNC Control ;  RS232

- Z Axis ;   630mm  (24.8")   /   0.001mm     (.00004")
- X Axis ;   215mm  (8.46")   /   0.00025mm  (.00001")
- U Axis ;    70mm  (2.76")   /   0.0005mm    (.00002")
- B Axis ;   Swivel   -30 /  45 deg.
- T Axis ;   4 Spindle Turret Head

Machine equipped with ;

- Elect. Control Cabinet ;  480 Volt , 3 Ph. ( or 380 Volt )
- Elect. CNC Control Panel ; RS232 , Series 2000 with Diagnostic Functions
- 4 different High-Frequency Grinding-Spindles
- Grinding Spindle Oil-Mist Lubrication Systems
- Grinding Wheel Guard
- Linear & Circular Interpolation
- Dressing Unit ; O.D. , Left & Right - Face
- Dressing Unit ; CBN / Diamond Grinding-Wheel Dresser
- Automatic Wheel Wear Compensation
- Air - Gap Grinding Elimination System
- Workhead Camlock 6 , Chuck
- Automatic Lubrication System
- Coolant System with Paper Filter
- Machine Complete enclosed with Splash Guard and Sliding-Doors
- Operator / Program & Maintenance Manuals in English


TRIPET BS200 CNC Internal Grinder

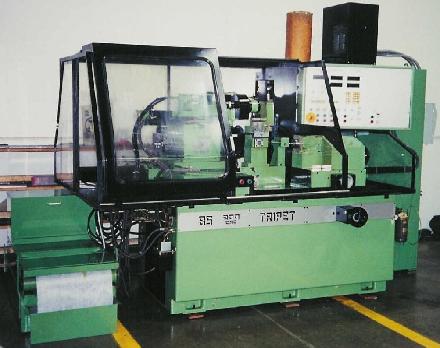

TRIPET , BS200 - CNC , ID Grinder
TRIPET , BS200 - CNC , ID Grinder

T R I P E T

BS 200 - CNC


High
-Precision 1 Spindle CNC I.D. Ginder


TRIPET ;  BS200 CNC ;  Ultra-Precision Internal Grinding Machine ;



5 Axis CNC Control ;  RS232

-  Grinding Diameter Range   ;   3 – 120 mm ,  (.118” – 4.725”)

-  Grinding Length                  ;    200 mm ,  ( 8” )

-  Center height above table   ;   132mm ,  ( 5.2” )

-  Z Axis ,  Max table travel     ;   500mm ,  ( 19.68” )

-  X Axis

-  U Axis

-  B Axis ,  Swivel – Axis         ;   -30 / +45 deg.

-  W Axis , Face Grinding Attachment

-  Workhead Camlock 4           ;    50 kg , ( 110 lbs )

-  Workhead Spindle speed    ;    75 – 1300 rpm

-  Grinding Spindle speed       ;   8000 – 150000 rpm

Machine equipped with ;

-  Electric-Control-Cabinet ;  480 Volt , 3Ph,  ( or 380 Volt )

-  Grinding Spindle Motor

-  Grinding Spindle Oil-Mist Lubrication Unit

-  Grinding Wheel Guard

-  O.D. Dressing Unit

-  Face Dressing Unit

-  Automatic Wheel Wear Compensation

-  Air Gap Grinding Elimination system

-  Workhead Camlock 4 ,  Chuck

-  Coolant System with Paper Filter

-  Machine Complete enclosed with Splash Guard and Sliding-Doors

-  Operator / Program & Maintenance Manuals in English

-  Machine Set-up Tools


Document
Tripet BS200-CNC - 1 Page Brochure - 605 kb
Document
Tripet BS200-CNC - 12 Page Brochure - 4706 kb


Tripet  BS200  CNC

Internal Grinder
with Face Grinding Unit


" Demo Video on YouTube "
